The 5 in 1 combo antenna includes GPS/GLONASS, 2G/3G/4G LTE diversity, 2.4G/5.8G WIFI MIMO frequency, it meets specifications for durability and quality and is also suitable for various, including fleet management, asset tracking, vehicle tracking, and other wireless communications solutions.
| Frequency | 1575.42±3MHz, 1602MHz, 2400-2500MHz/2700-3800MHz, 698-960/1710-2100MHz |
|---|---|
| VSWR | 1.5:1 |
| Polarization | R.H.C.P |
| LNA Gain | 28±2dB |
| Noise Figure | 1.5dB |
| DC Voltage | 2.2-5V |
| DC Current | 5-15mA |
| Mounting | Adhesive/Magnetic |
| Waterproof | IP67 |
| Connector | SMA/SMB/FAKRA/TS9 or customized |

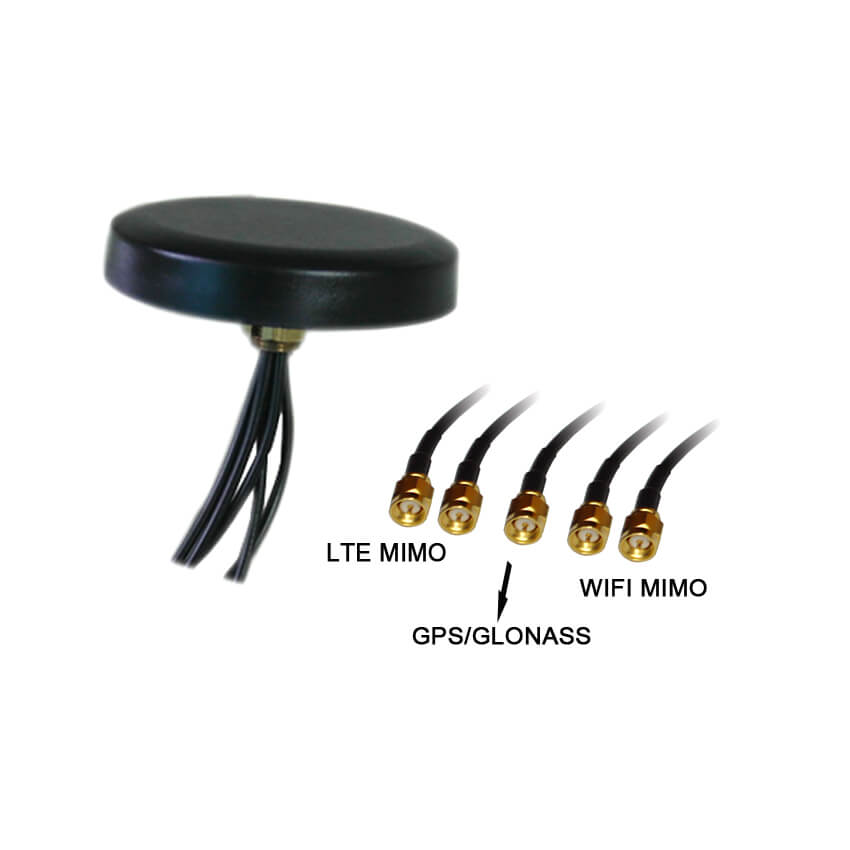

5 in 1 combination antenna is multi-band frequency including GPS/GLONASS + LTE MIMO + WIFI MIMO. It’s a screw mounting antenna, installed through a hole. It can be customized with different cables, different connectors, and mounting ways. It meets specifications for durability and quality and is also suitable for various, including fleet management, asset tracking, vehicle tracking, and other wireless communications solutions.
The antennas should be mounted in full view of the sky, the performance will be highly dependent on the view area.
Connectors optional as below:
