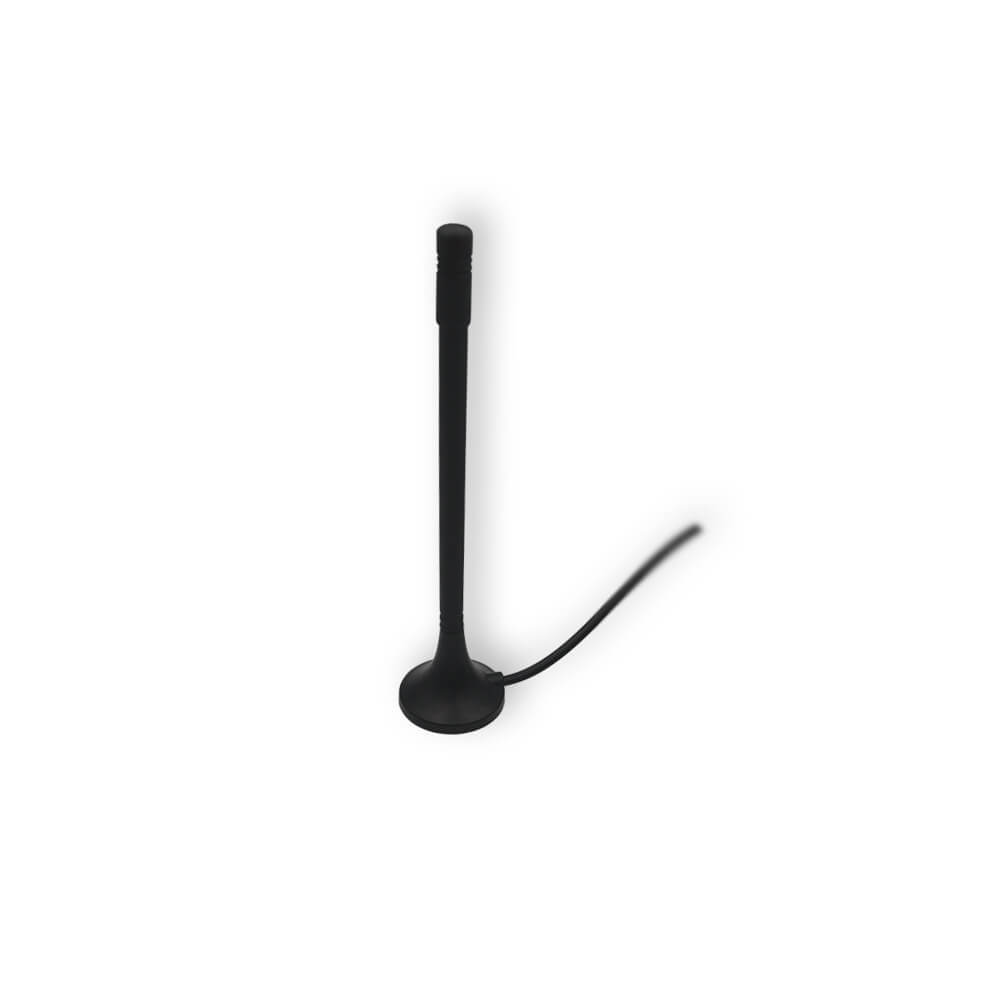

GSM WIFI LTE magnetic antenna

GSM WIFI LTE magnetic antenna
Categories , , , ,

The magnetic antenna covers frequency of 433MHz, 868MHz, 2G/3G/4G and 2.4G,  it can be used for wireless solutions and M2M applications.

Additional information

Frequency

2400-2500MHz, 698-960/1710-2100MHz, 698-960/1710-2700MHz
VSWR

1.5:1
Gain

2-3dbi
Impedance

50ohm
Mounting

Magnetic
Connector

SMA/SMB/FAKRA/TS9 or customized
Size

D30*120mm
Color

Black
ASK FOR A QUOTE

Product Details:

This magnetic base antenna could be customized in different cables and connectors. It could be customized in the ISM band of 433MHz or 868MHz. And it’s with good performance across a wide bandwidth, covering all global cellular frequency bands (4G/3G/2G) from 698 MHz up to 2700 MHz. As it supports 2400MHz, so it’s also an excellent antenna for WIFI solutions.

Connectors optional as below:

Antenna Connectors

  • SMA /FAKRA/SMB/TS9 or FME connectors for choice
  • More frequency for choice, such as GSM, WIFI, LTE, etc.
  • The magnetic base with a strong fix could be used outside or inside
